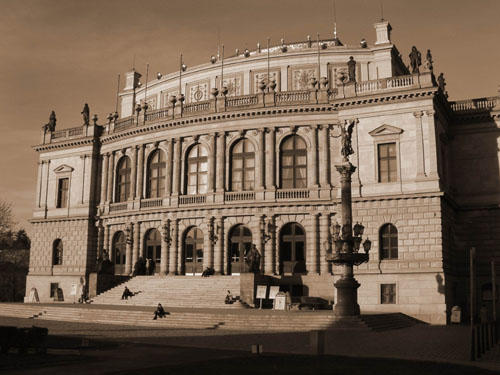

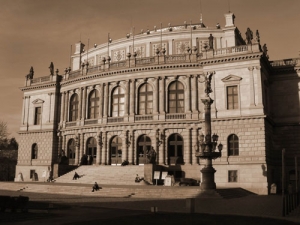

Dvorak Hall, Rudolfinum

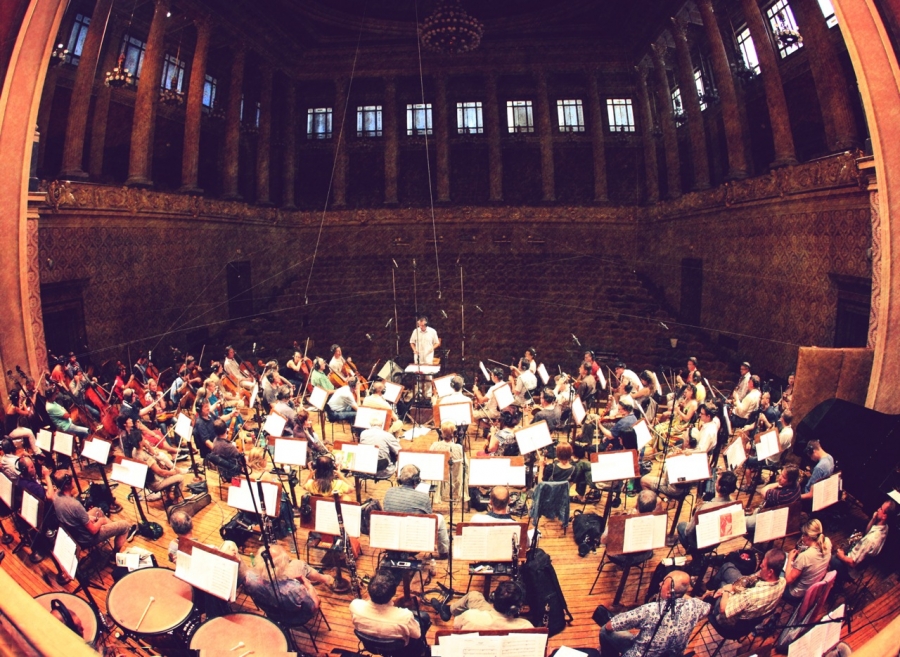

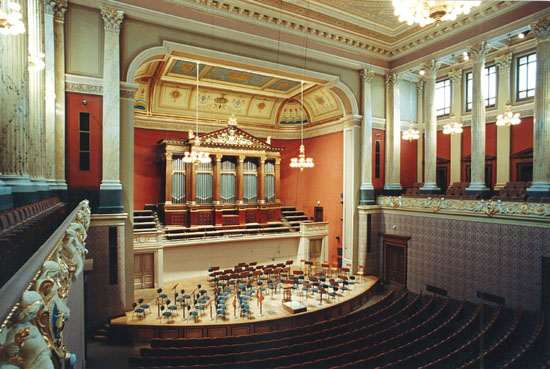

Dvorak Hall, the largest concert hall in the neo-renaissance Rudolfinum building, has been acknowledged as Prague's premier concert hall and is the home stage of the Czech Philharmonic Orchestra. This famous venue also hosts the Prague International Music Festival and many other concerts throughout the year. The ornate interior with 1100 seats provides some of the best acoustics on the continent. The hall, accompanied by the best studio facility in Prague, creates the ideal place for recordings.
Recording technology & equipment
| Mixing consoles: | ||
| Solid State Logic - Duality | 1 x Total Recall, Automation (72 Channel, mix 5.1) | |
| Panasonic RAMSA DA-7 MK II | 1 x Digital console (16 mono inputs, epansion cards) | |
| Recorders: | ||
| PRO TOOLS HD v 8 | 3+1 192 I/O (32 tracks) + SYNC I/O | |
| G5/sw .v. 7.3.1 24bit, 32ch I/O, max192kHz | ||
| Digital Performer v 6 | 1 x MOTU UltraLite Mk 3 (mix 5.1) | |
| G5 PRO | ||
| SADIE 4 | 1 x Artemis 24 tracks | |
| TASCAM | 2 x DA 78 HR (2 x 8 tracks) | |
| 1 x DA 98 HR (8 tracks) | ||
| 2 channel recorders: | ||
| DAT SONY | 2 x PCM 2700 | |
| 1 x PCM 7050 | ||
| 1 x PCM R 700 | ||
| CDR HHB | 1 x CDR 830 BurnIt Plus | |
| Analog 1“ | 1 x Studer A 807 (s Dolby SR / A) | |
| MC-Casette | 3 x Sony TC-K 770 ES | |
| External preamplifiers: | ||
| Millennia HV 3 R (56 Channels) | 7 x Microph. 8 ch preamp | |
| Millennia STT-1 (2 Channels) | 2 x Twin Topology 1ch preamp | |
| External converters: | ||
| Euphonix A/D (24 ch. 24bit/96kHz) | 1 x type AM 713 (Analog to MADI) | |
| 1 x type MD 704 (MADI to AES) | ||
| Euphonix D/A (24 ch. 24bit/96kHz)) | 1 x type DM 714 (AES to MADI) | |
| 1 x type MA 703 (MADI to Analog) | ||
| Benchmark A/D D/A 2 channel | 1 x type ADC1 | |
| 1 x type DAC1 | ||
| Video equipment: | ||
| Plasma monitors | 2 x Panasonic TH 42PH10 (NTSC or PAL) | |
| Classic video monitors | 3 x PVM 2730 QM (NTSC or PAL) | |
| Canopus ADVC-110 | 1 x External firewire video card (NTSC or PAL) | |
| U-matic SONY | 1 x BVU 900 (PAL player, Hi / Lo band 25 frames) | |
| VHS SONY | 1 x SL-V 715 (NTSC or PAL) | |
| Studio listening: | ||
| Audio monitors | 8 x B & W Matrix 801 MK III | |
| 1 x JL Audio Fathom (LFE) | ||
| 2 x Yamaha NS 10 M | ||
| 4 x JBL Control 1 | ||
| 2 x Electro Voice Sentry 100 EL with power amp. | ||
| Power amplifiers | 6 x B & W M 800 Mono Power Amp. | |
| 1 x Chord 1242 dual | ||
| 2 x HH VX-900 dual | ||
| Synchronization: | ||
| Blackburst PAL | 1 x PAL / EBU | |
| Nanosync | 1 x Rosendahl, DDS Audio clock and video sync.ref.gen. | |
| Headphones: | ||
| Wired | 2 x Sennheiser HD 250 | |
| 5 x AKG K 240 DF | ||
| Wireless (for musicians) | 150 x Sennheiser HDI 234 infrared | |
| Effects: | ||
| Lexicon | 1 x 480L (V 4.0) multieffect | |
| 1 x 960L multieffect | ||
| Eventide | 1 x H 3000 B multieffect | |
| Yamaha | 4 x SPX 900 multieffect | |
| TC Electronic | 1 x Finalizer + digital compressor - limiter | |
| Sony | 1 x SDP 1000 digit. comp-limit-equaliser | |
| Urei | 2 x Urei 1178 analog compressor | |
| Klark Teknik | 2 x DN 360 equaliser | |
| Metronome | 1 x Wittner TM 1 Quartz | |
| Microphones: | ||
| Neumann | 16 x U 87A i P48 | |
| 10 x TLM 170 P 24 / P 48s | ||
| 2 x SM 69 fet | ||
| 2 x M 149 Tube | ||
| 2 x M 147 Tube | ||
| 10 x KM 140 | ||
| AKG | 10 x C 414 B-ULS | |
| 5 x C 451 EB CK 1 | ||
| 2 x C 451 EB CK 5 | ||
| 4 x C 451 EB CK 22 | ||
| 4 x C 747 comb | ||
| 2 x D 112 | ||
| 2 x D 224 E | ||
| 4 x D 330 BT Mark III | ||
| Schoeps | 12 x CMC 5 MK 4 | |
| 4 x MK 2 S | ||
| 4 x MK 41 | ||
| 2 x MK 8 | ||
| 4 x MK 6 | ||
| 5 x MK 21 | ||
| 4 x MK 4 V | ||
| 4 x M 222 Tube | ||
| 2 x CCM 4 Ug | ||
| Bruel & Kjaer | 4 x B&K Type 4011 | |
| 4 x B&K Type 4006 | ||
| DPA | 4 x DPA 4051 omni | |
| 2 x DPA 4027 halfomni | ||
| Shure | 2 x Beta 57 | |
| 2 x Beta 58 | ||
| Dimensions: | ||
|
Dvořák´s hall (concert hall) - max. 120 musicians, 140 choir |
24 x 32 x 14 m (Width x Lenght x Height) | |
|
Suk´s hall (concert hall) - max. 15 musicians |
10 x 24 x 6 m | |

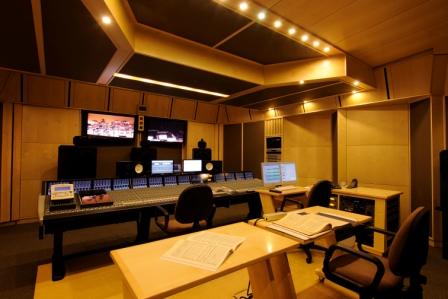

| Control Room No. 1 | 8 x 8 x 3 m | |
|
Control Room No. 2 (... , or recording room for 6 musicians) |
8 x 8 x 3 m | |
